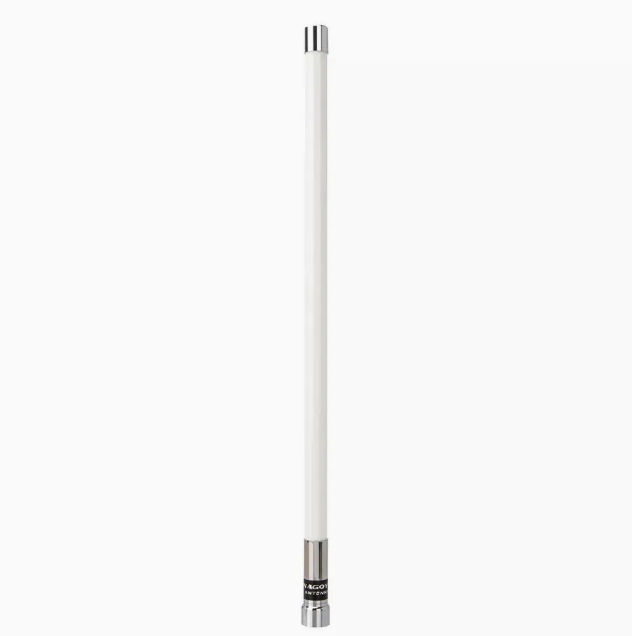

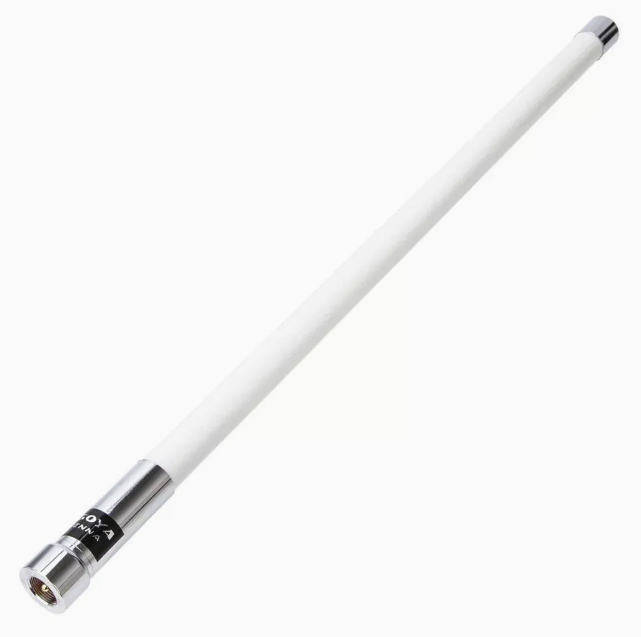

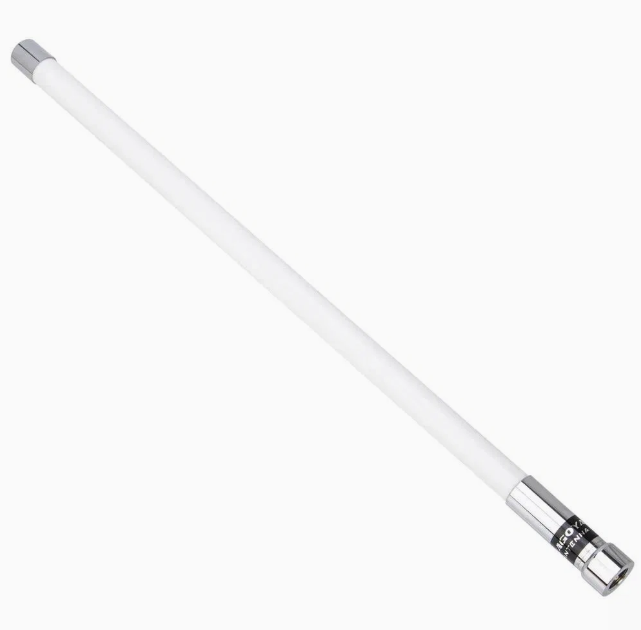

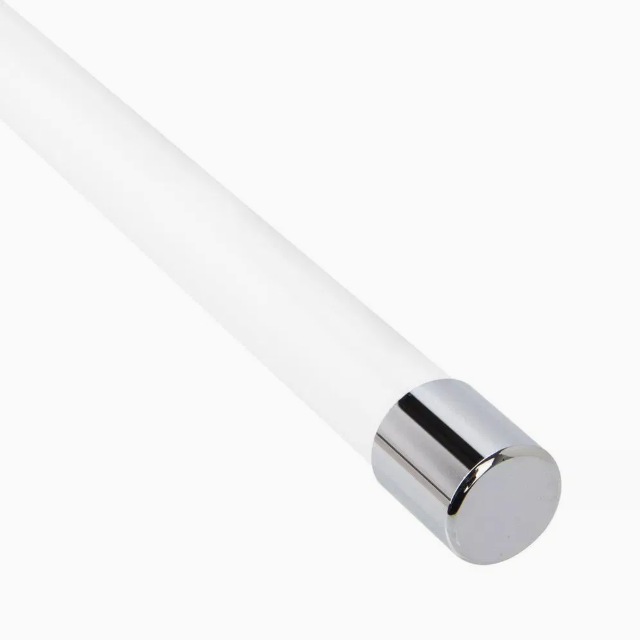

NL-550 Fiberglass Antenna
NL-550 Fiberglass Antenna
Couldn't load pickup availability
Constructed from durable fibreglass, the NL-550 antenna is pre-tuned, weatherproof and with a gain of 3.0dB(144MHz) and 5.5dB(430MHz), it delivers reliable signal strength ensuring long range clear communication while still being compact in length.
Main features:
Model: NL-550
Frequency: 144/430 MHz
Gain: 3.0dB(144MHz) 5.5dB(430MHz)
Maximum input power: 200W
Impedance: 50 ohms
V.S.W.R. <1.5
Form: 1/2λ(144MHz) 5/8λ(430MHz)

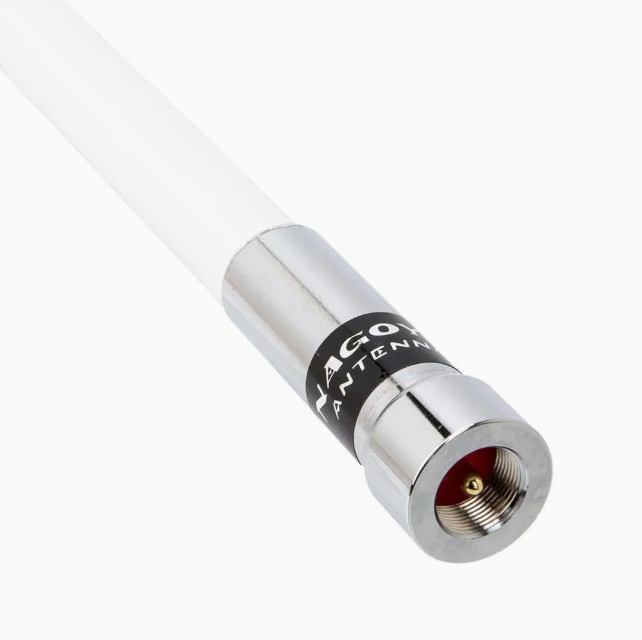

Connector: PL259
Color: white
Weight: 232 grams
Length: 55cm
This antenna can be used in conjunction with the following products:
5 meter PL259 to SO239(90Deg) coaxial cable:
Link: https://rttechnologies.co.za/products/5-meter-pl259-to-so23990deg-coaxial-cable?utm_source=copyToPasteBoard&utm_medium=product-links&utm_content=web
Stainless steel Antenna mounting bracket (90degree mount):
Link: https://rttechnologies.co.za/products/stainless-steel-antenna-mounting-bracket-90degree-mount?utm_source=copyToPasteBoard&utm_medium=product-links&utm_content=web
What's in the box:
1 x NL-550 Fiberglass Antenna
