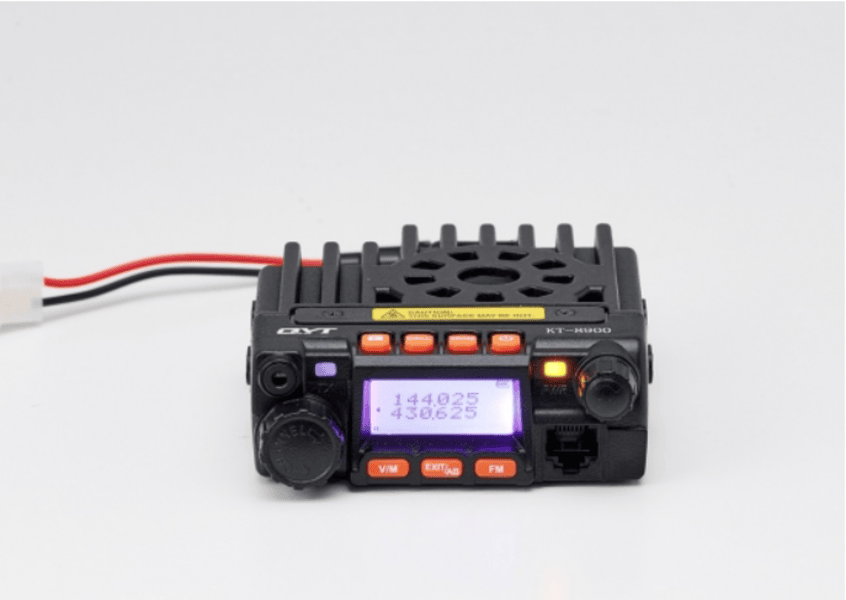

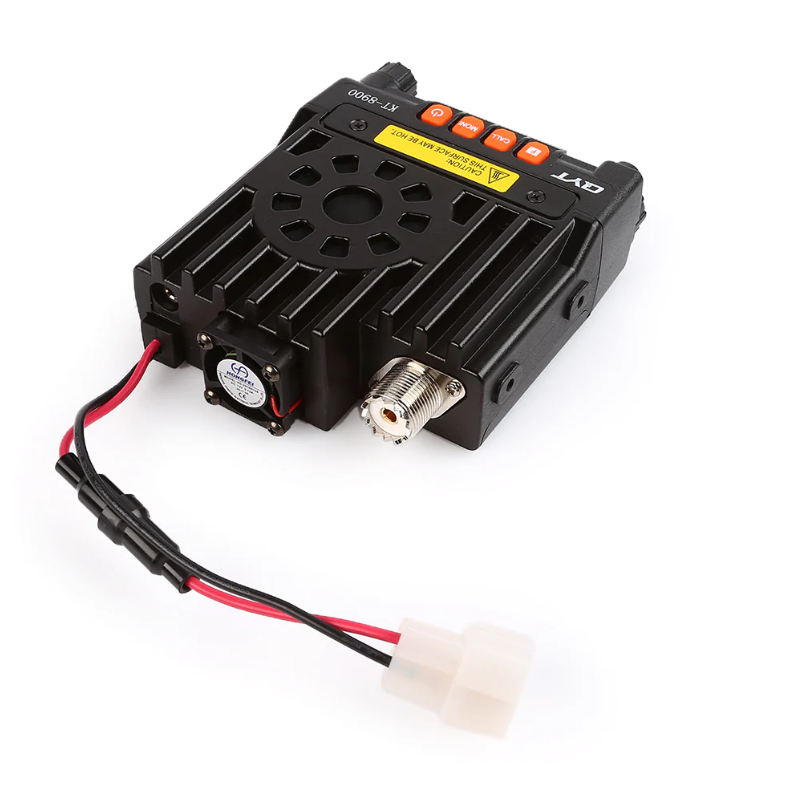

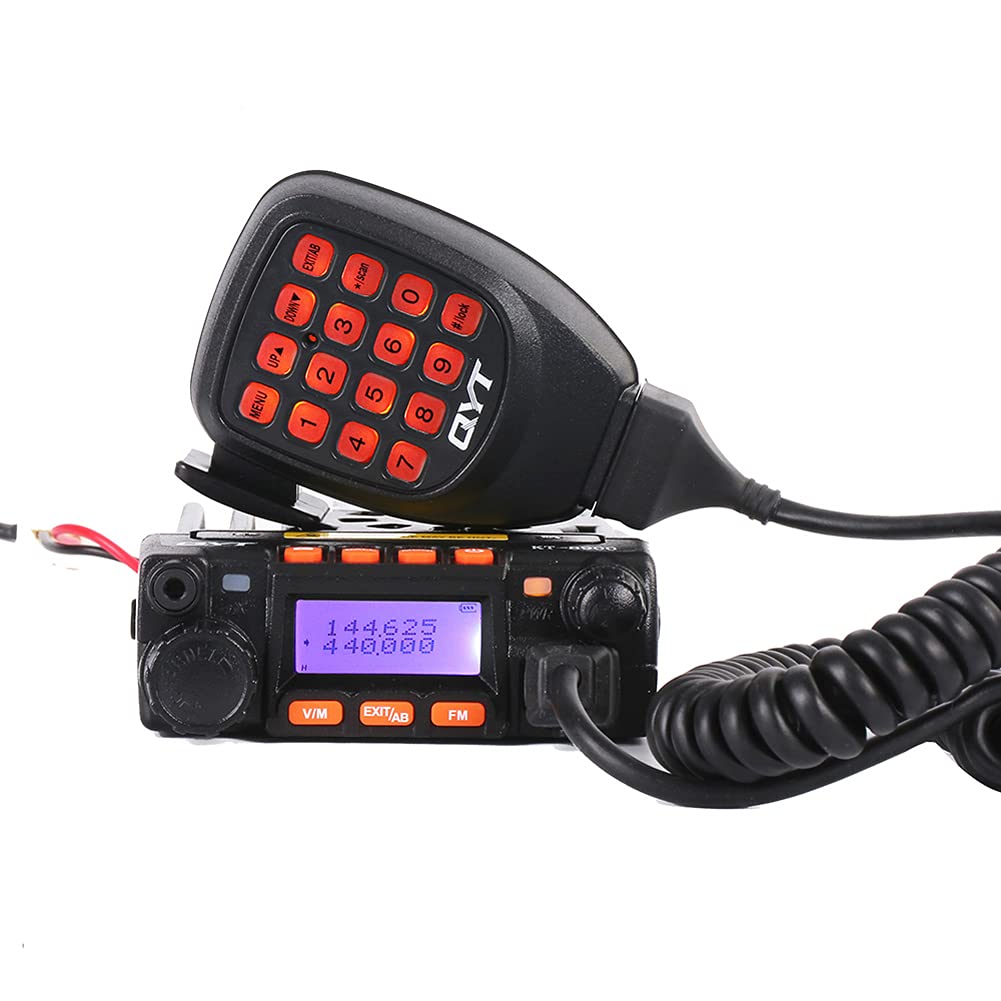

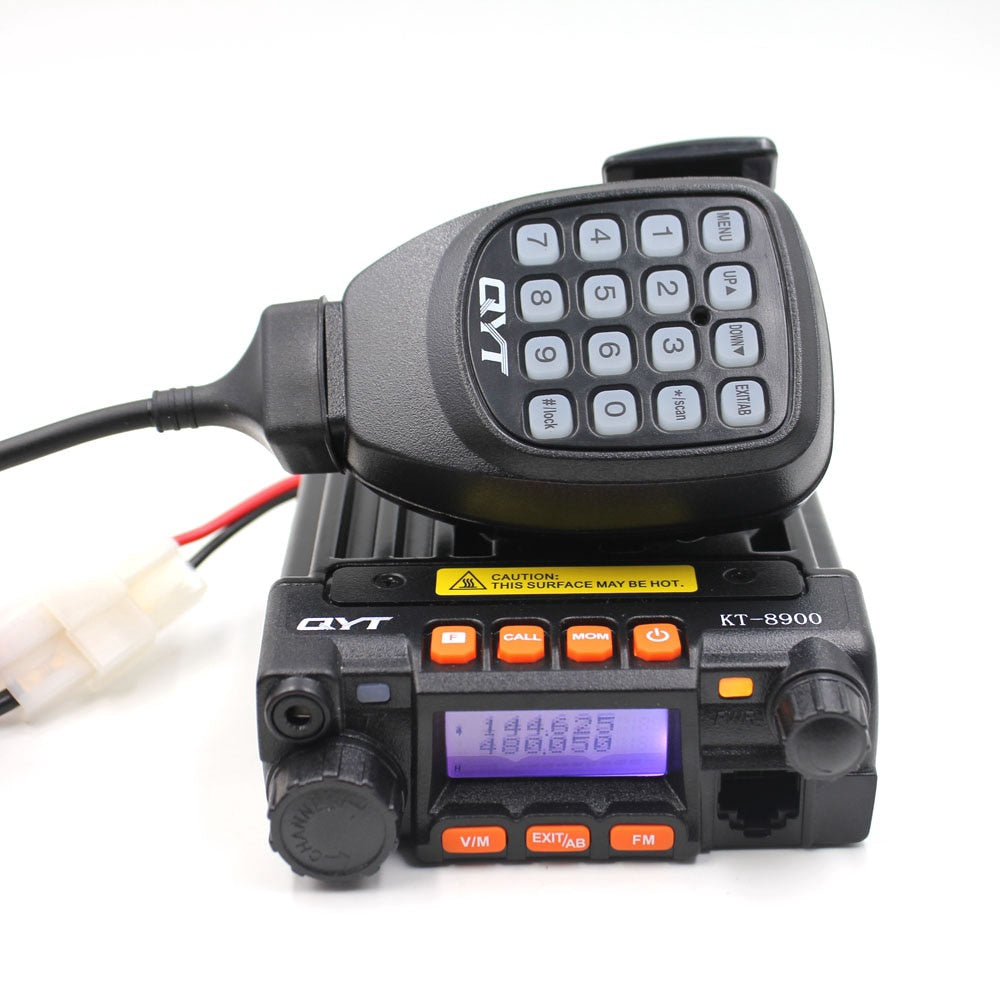

QYT KT-8900 is VHF UHF mobile radio which with simultaneous dual band receive. Max 25 Watts RF output on VHF and max 20 watts on UHF.
Analog mobile radio has never been so cost performance as with the KT-8900.
The Mini Size, Simple Design, Easy to Use, Excellent Quality and Full-Range VHF 136-174MHz and UHF 400-480MHz.
The KT-8900 could be used as commercial mobile radio, public mobile radio even taxi two way radio.

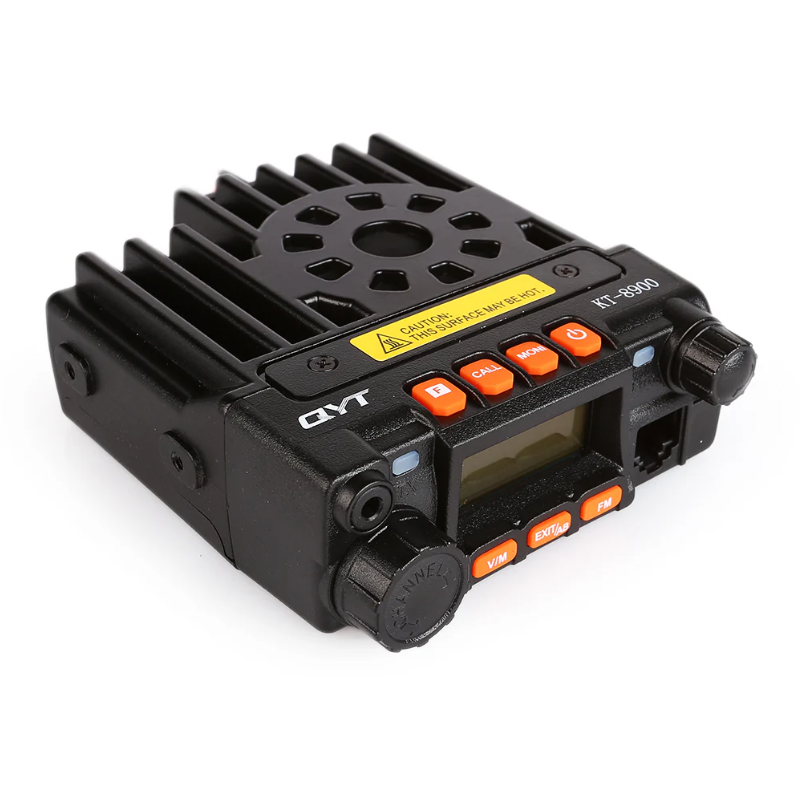

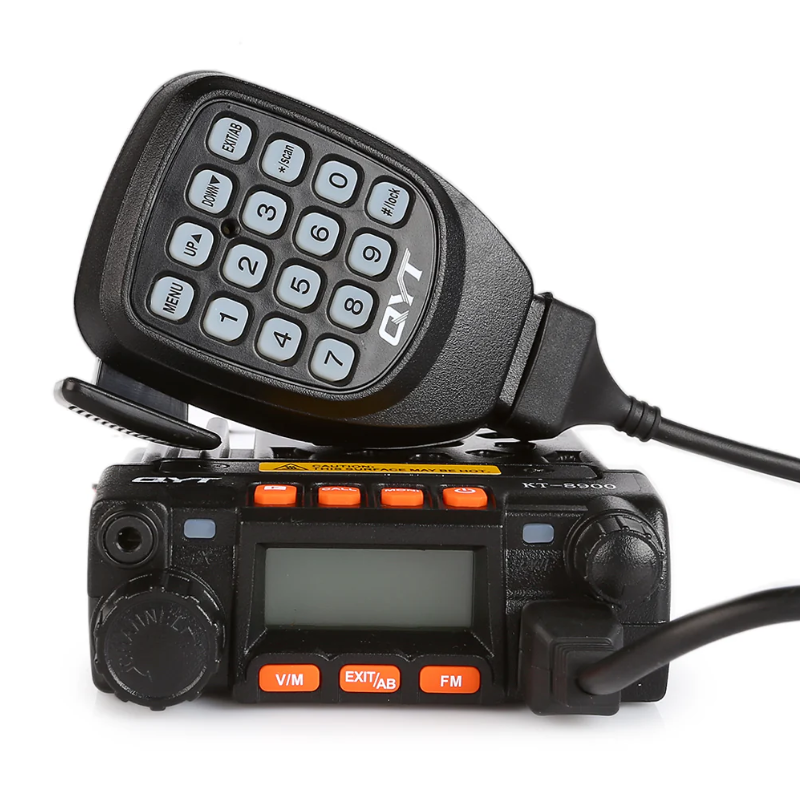

The QYT KT-8900 offers up to 25 watts VHF and 20 watts UHF operation in High output mode. It features 256 Channels, with CTCSS and DCS, channels scan and DTMF technology. It includes Lone worker mode, an emergency alarm and VOX capability. The KT-8900 has an LCD display, programmable function keys on the console, a hand microphone with programmable keys, a built-in LEDs and a DTMF keypad.
The QYT KT-8900 is also repeater capable and compatible with all brand analog walkie talkie and mobile ham radios.
Functions:
Frequency Range: VHF 136-174MHZ UHF: 400-480MHz
Output Power: VHF 25Watt, UHF 20Watt
CTCSS/DCS/5Tone/2Tone/DTMF
FM Radio Function, PTT ID, Auto Lock, Remote stun, Remote Kill
200 Channels

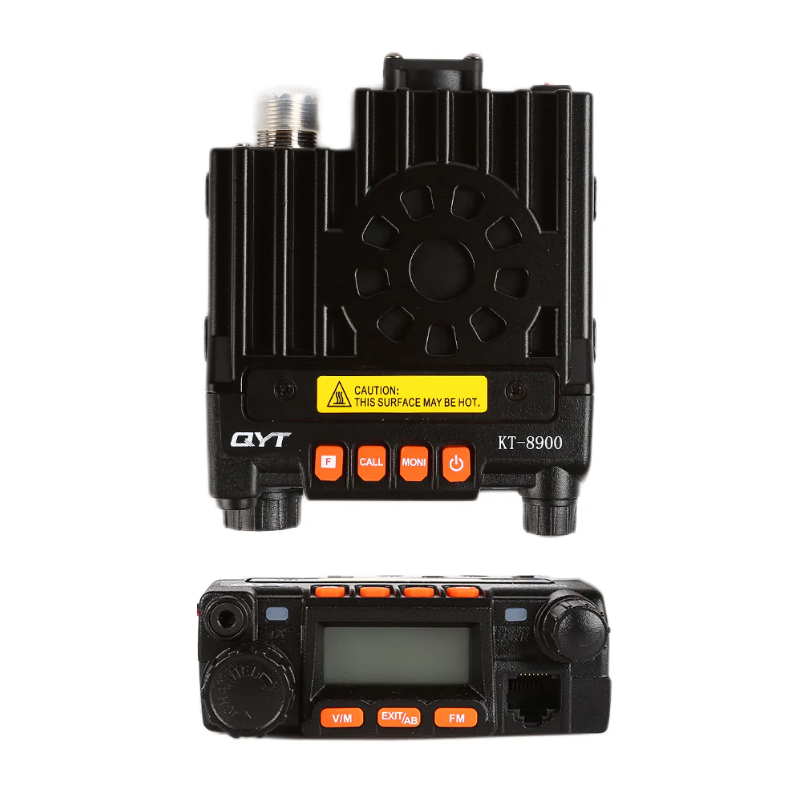

Mini size: 98*35*118 mm

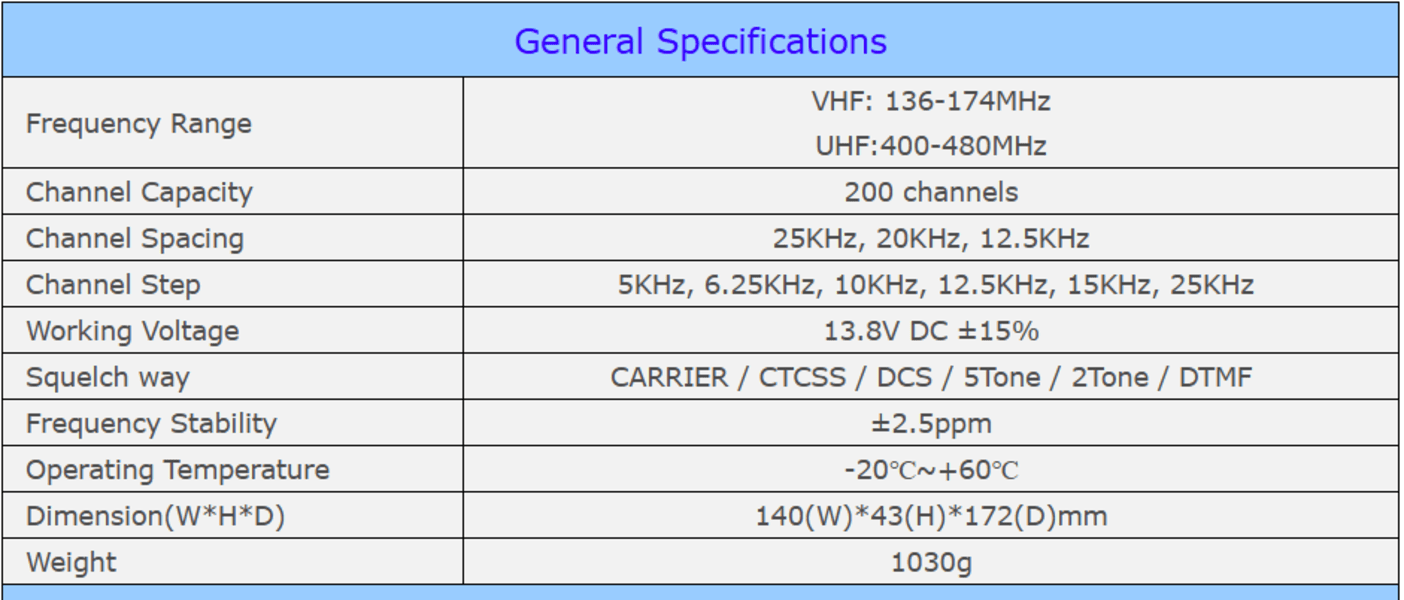

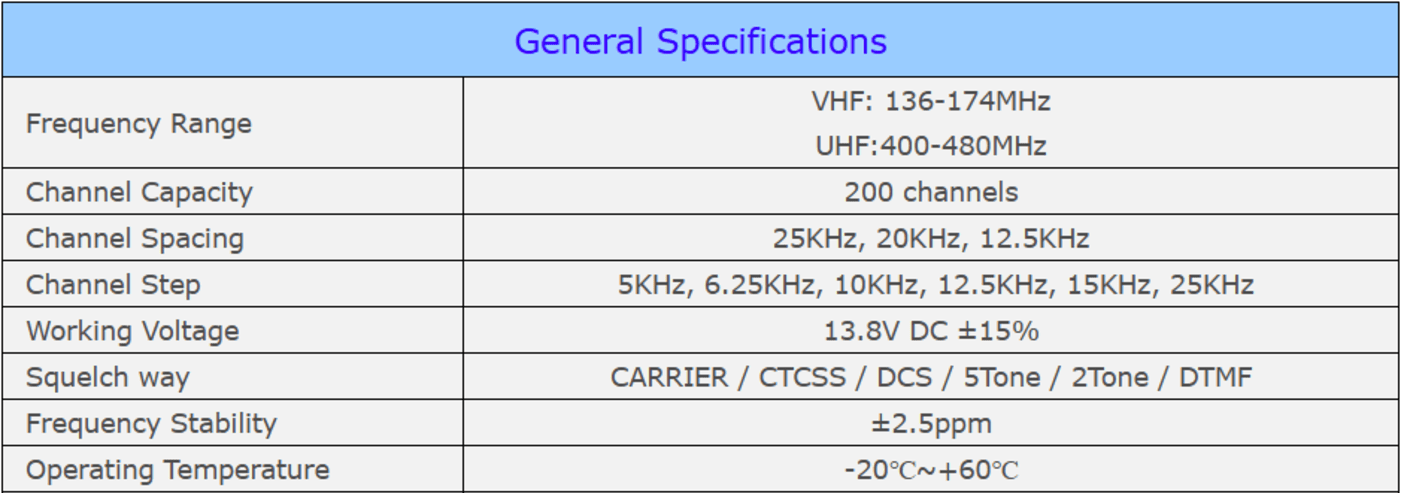

General:
Frequency Range: VHF:136~174MHz UHF:/400-480MHz
Channel Capacity: 200
Channel Spacing: 25KHz 20KHz 12.5KHz
Phase lock step: 5K, 6.25K, 10K, 12.5K, 15K,25K
Working Voltage: 13.8V DC±15%
Frequency Stability: ±2.5ppm
Operating Temperature: -20~+60
Operating Voltage: 13.8V DC ± 15%
Weight (with bracket): 866g

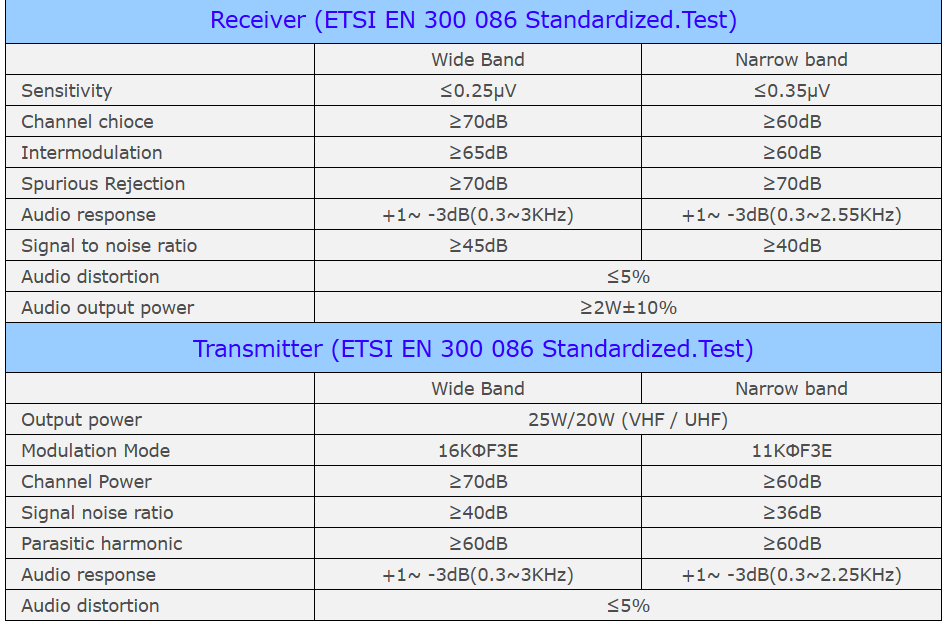

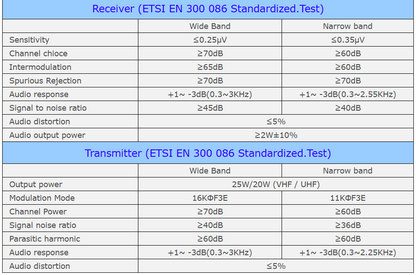

Receiver:
Sensitivity: 0.25V / 0.35V
Channel choice: 70dB / 60dB
Intermodulation: 65dB / 60dB
Inter-modulation Rejection: 60dB / 65dB
Spurious Rejection: 70dB / 70dB
Signal to noise ratio: 45dB / 40dB
Audio Distortion: 5%
Audio output power:2W@10%
Transmitter:
Output power: 25W/20W(VHF/UHF)
Modulation Mode: 16KF3E / 11KF3E
Channel Power: 70dB / 60B
Signal to noise ratio: 40dB / 36dB
Parasitic harmonic: 60dB/ 60dB
Audio response: +1~ -3dB(0.3~3KHz) / +1~ -3dB(0.3~2.55KHz)
Audio distortion: 5%

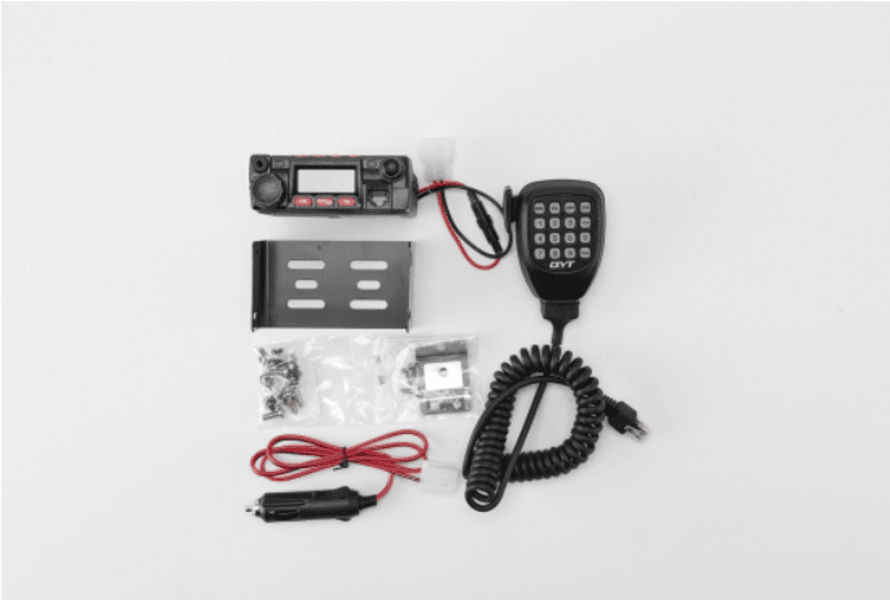

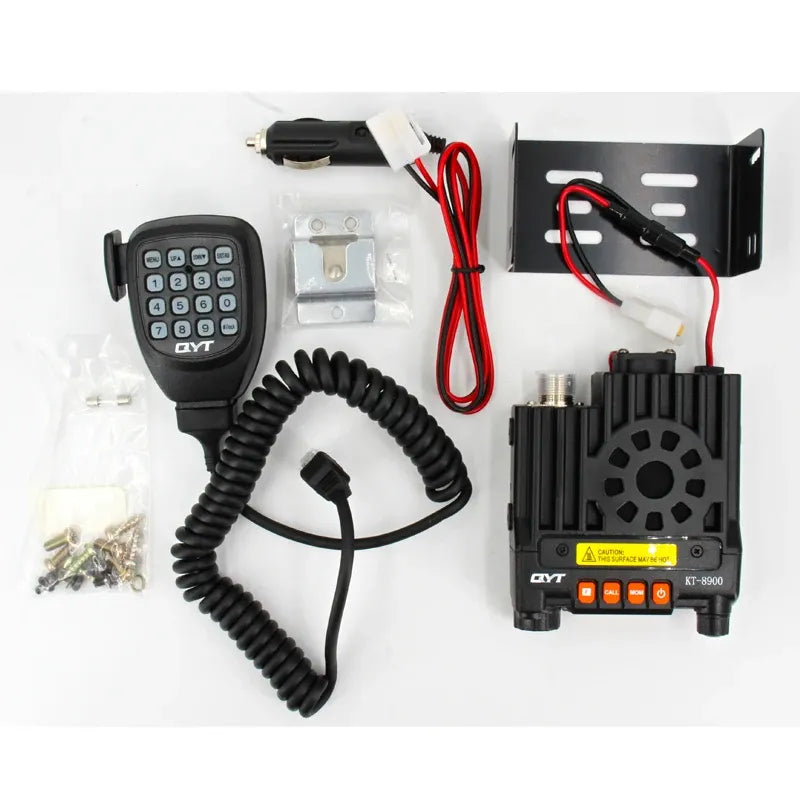

What's in the kit:
1x QYT KT-8900 RADIO

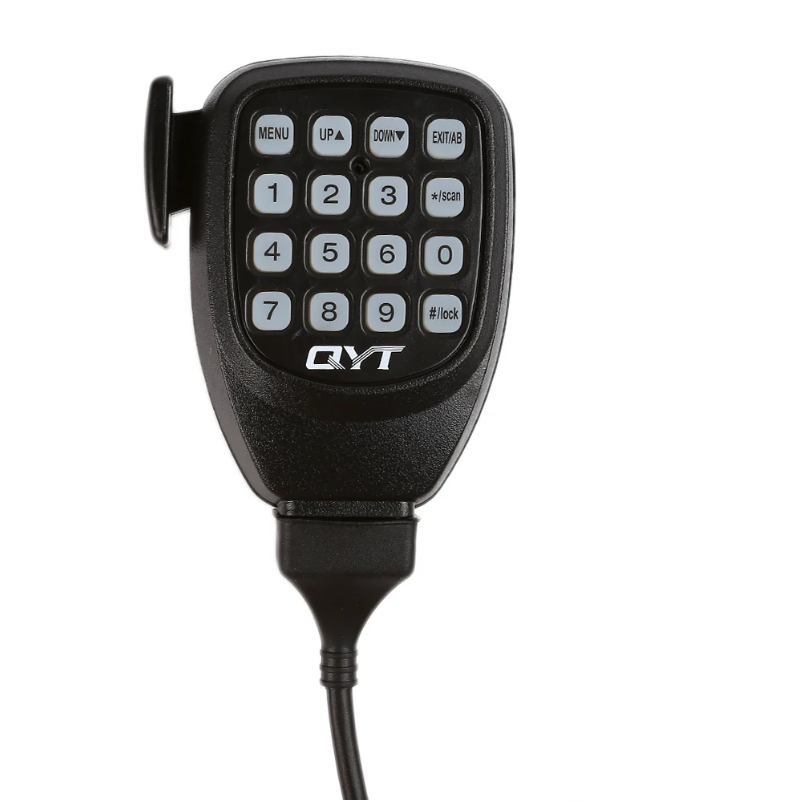

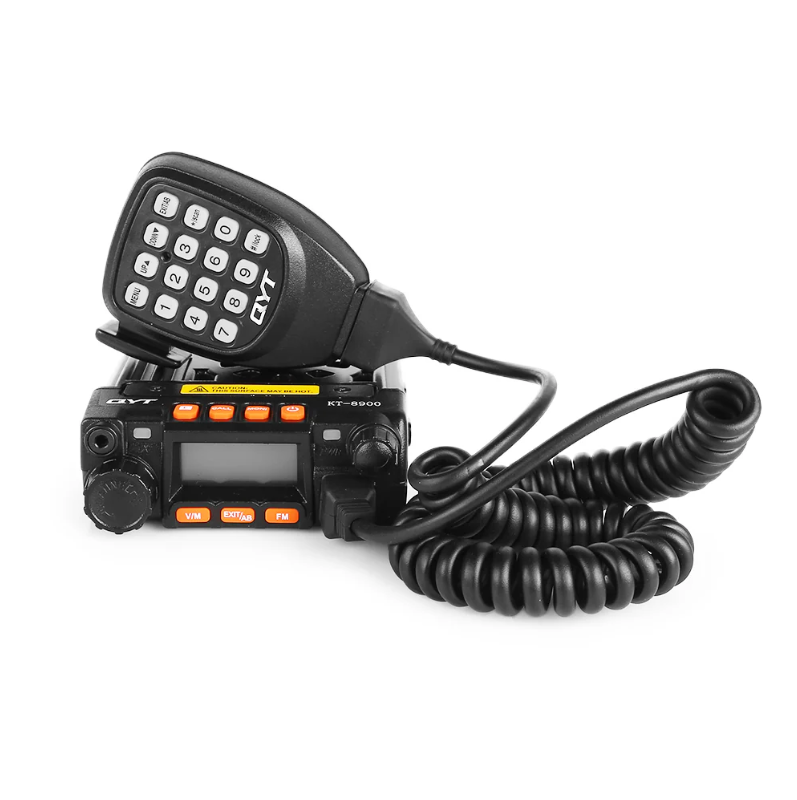

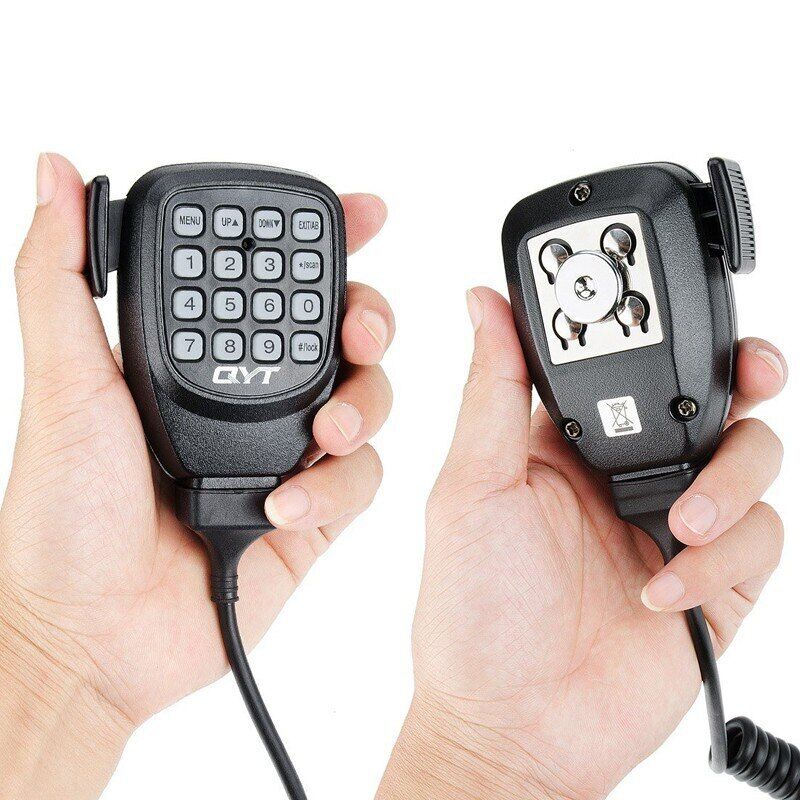

1x Microphone with cable.
1x DC power cable
1x Radio mounting bracket
Mounting hardware (All needed screws and Microphone bracket)
1x User's manual.
