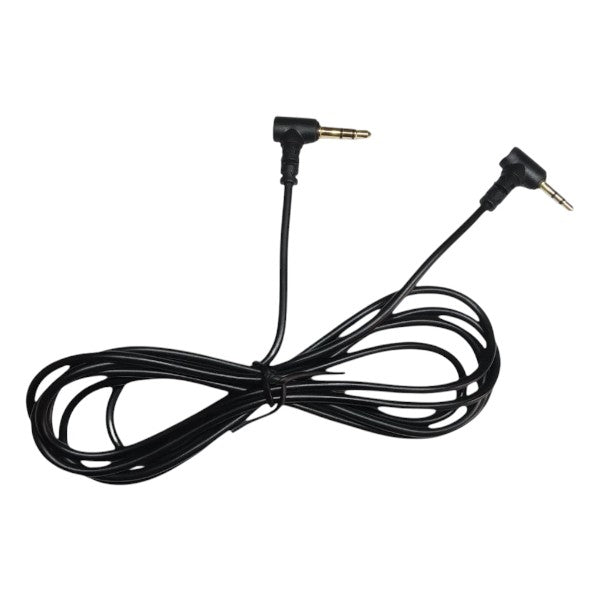

Repeater cable for 2 way radios (3.5mm-2.5mm connector)
Repeater cable for 2 way radios (3.5mm-2.5mm connector)
Regular price
R 120.00 ZAR
Regular price
Sale price
R 120.00 ZAR
Unit price
per
Couldn't load pickup availability
For use between 2 way radios to setup 2 radios as a repeater for radio communications.
How to use and setup:

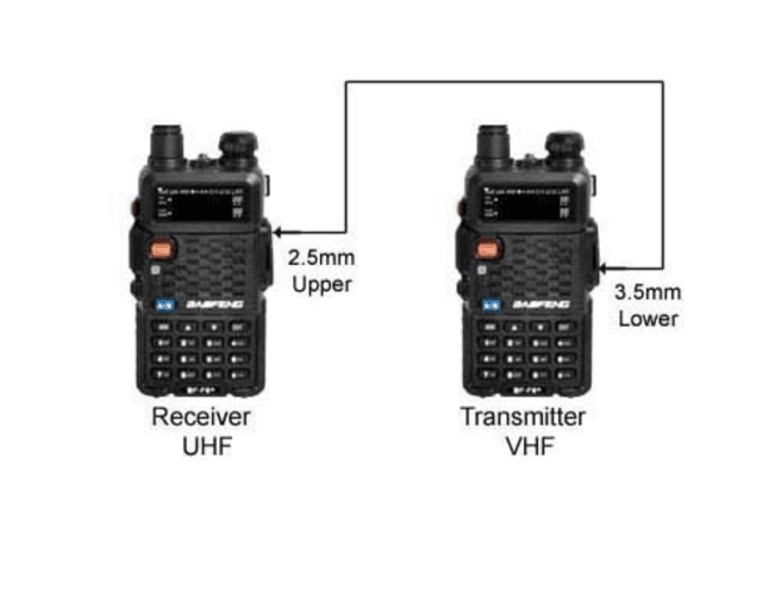

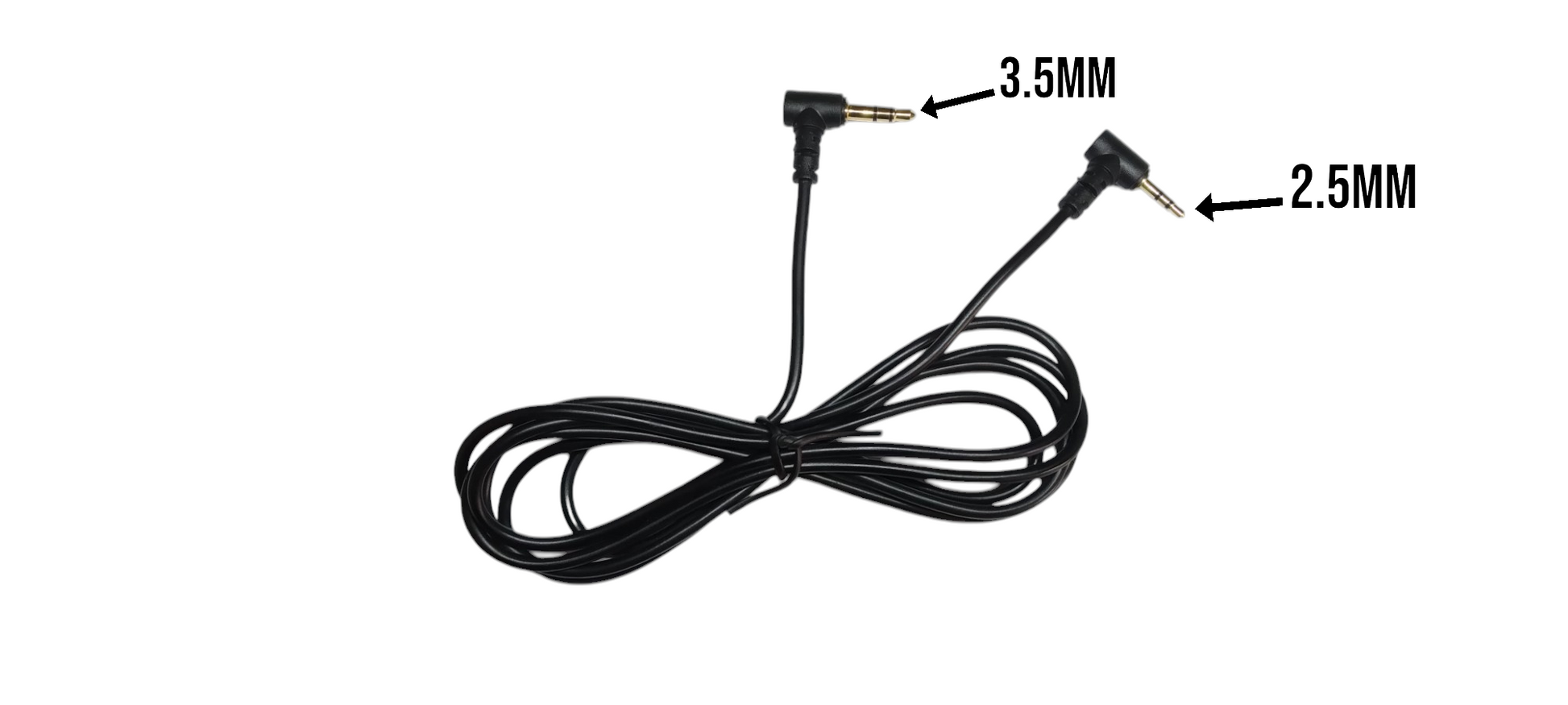

The 2.5mm end of the cable is plugged into the top jack on the side of the receiving radio as shown below in the picture, This unit will serve as the receiver.
The 3.5mm end is plugged into the lower jack of the transmitter unit.
Configuration:
The VOX on the TX unit needs to be turned ON.
With VOX Level set to 1, the TX will drop approximately 2 seconds after the RX squelch closes. With VOX Level set to 10, the TX will drop immediately upon RX squelch closing.
Adjust the volume from the RX radio to a comfortable level.
Cable length: 1.7m
