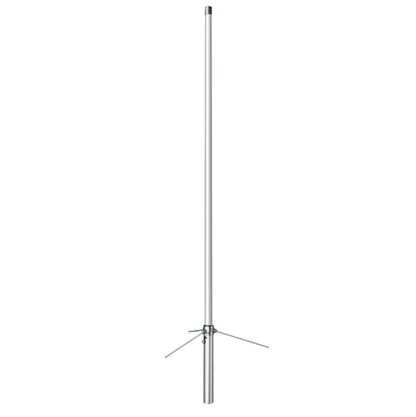

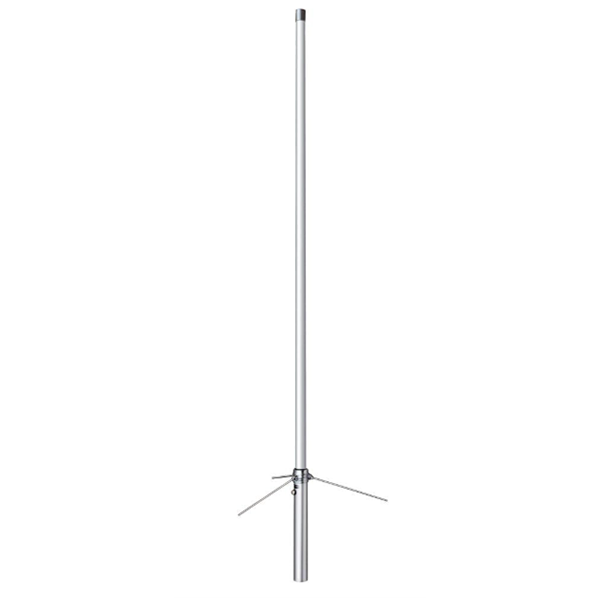

X-50 VHF/UHF Dual band base station antenna

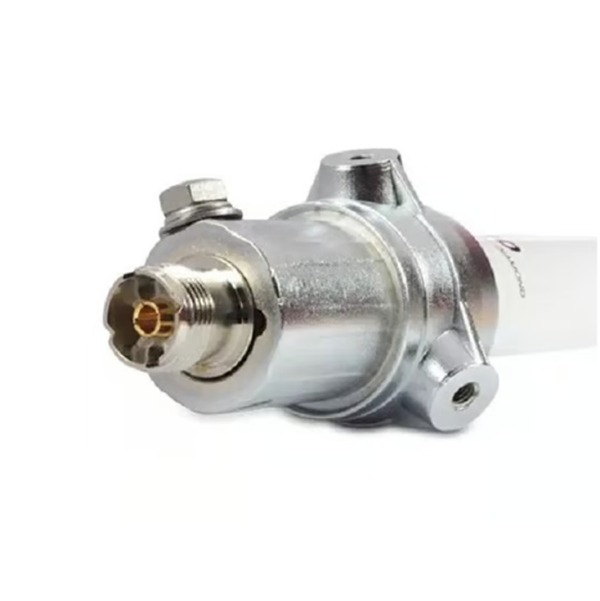

The X-50 is a rugged, high-performance dual-band vertical antenna designed for fixed station use on the 144 MHz (2m) and 430 MHz (70cm) Frequency bands. Featuring a UHF female (SO-239) connector, it ensures broad compatibility with transceivers and coaxial setups.

Constructed from durable fibreglass, the X-50 is pre-tuned, weatherproof, and includes mast mounting brackets for easy installation. With a gain of 4.5 dB (2m) and 7.2 dB (70cm), it delivers reliable signal strength ensuring long range clear communication.

Specification:

• Frequency 2m and 70cm
• Gain 4.5/7.2dB
• Power 200W
• Type 3 X 1/4, 3 X 5/8

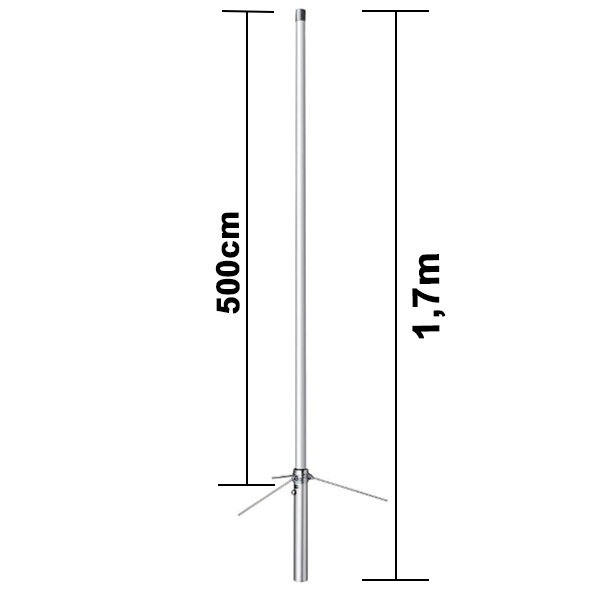

• Length 1.7m
• Radial length 19cm
• Mast size 30-62mm
• Wind velocity 60m/sec
• Weight 0.9kg
• Connection: SO239

What's in the box:

1x X-50 VHF/UHF Dual band base station antenna

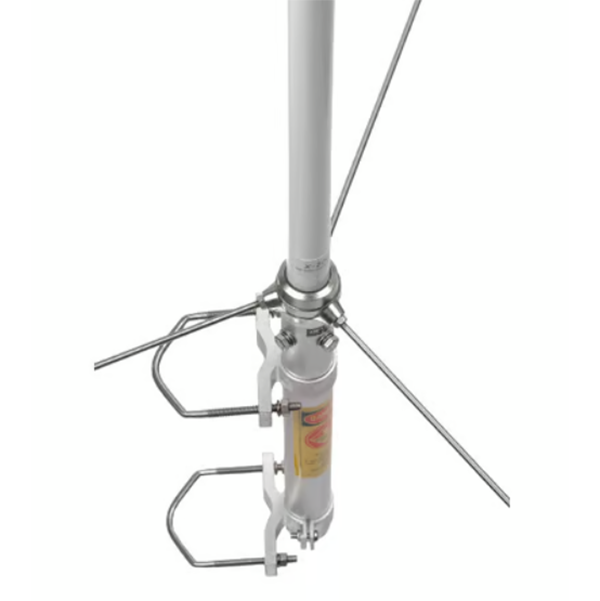

2x Aluminum mounting brackets.
3x Grounding radials
2x U-bolts for mounting brackets
1x user manual
