GENERAL
|
|
Frequency Range
|
136-174MHz
|
|
Operating Temperature
|
-20℃ to +55℃
|
|
Frequency Combination
|
please lock frequency synthesiz
|
|
Frequency Stability
|
±2.5ppm
|
|
Memory Channel
|
1024
|
|
Working voltage
|
7.4v
|
|
Antenna Impedance
|
50Ω
|
|
Operating Mode
|
simplex of co-frequency or alien
|
|

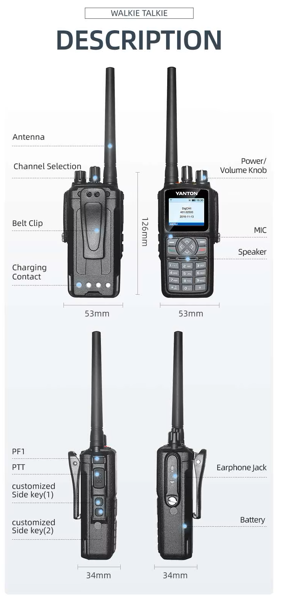

Dimensions
|
122*60*38mm
|
|
Weight
|
235g
|
|
TRANSMIT PART
|
|
RF power output
|
5W
|
|
Modulate Mode
|
F3E
|
|
Max.Freq.Deviation
|
≤5KHz
|
|
Remain Wave Radiation
|
<-60dB
|
|
Transmitting Current
|
≤1000mA
|
|
RECEIVER PART
|
|
Sensitivity
|
<0.20uV (12dB SINAD)
|
|
Squeich Sensitivity
|
<0.20uV
|
|
Intermodulation Antijamming
|
50dB
|
|
Audio Power output
|
500mW
|
|
Receiving Current
|
≤100mA
|
|
Squelch Standby
|
20mA
|
Video: https://youtu.be/sC57h4fJQM4?si=lYO9SDamqvg9-vM0

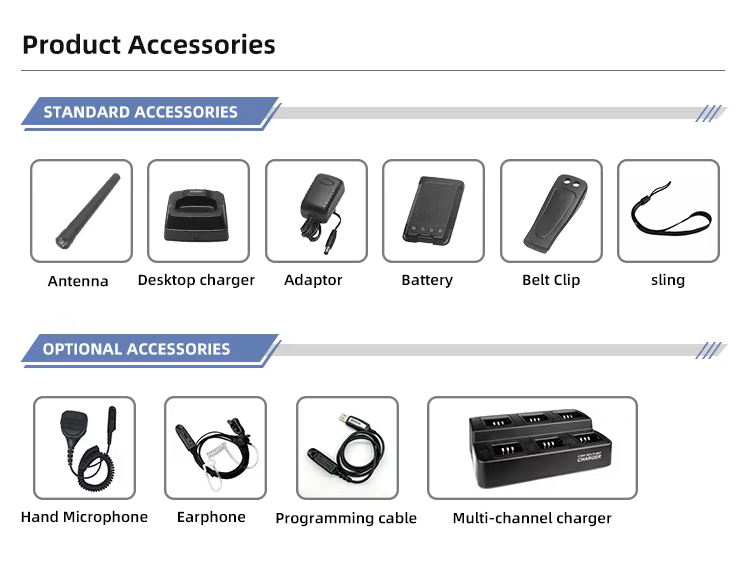

What is in the box:

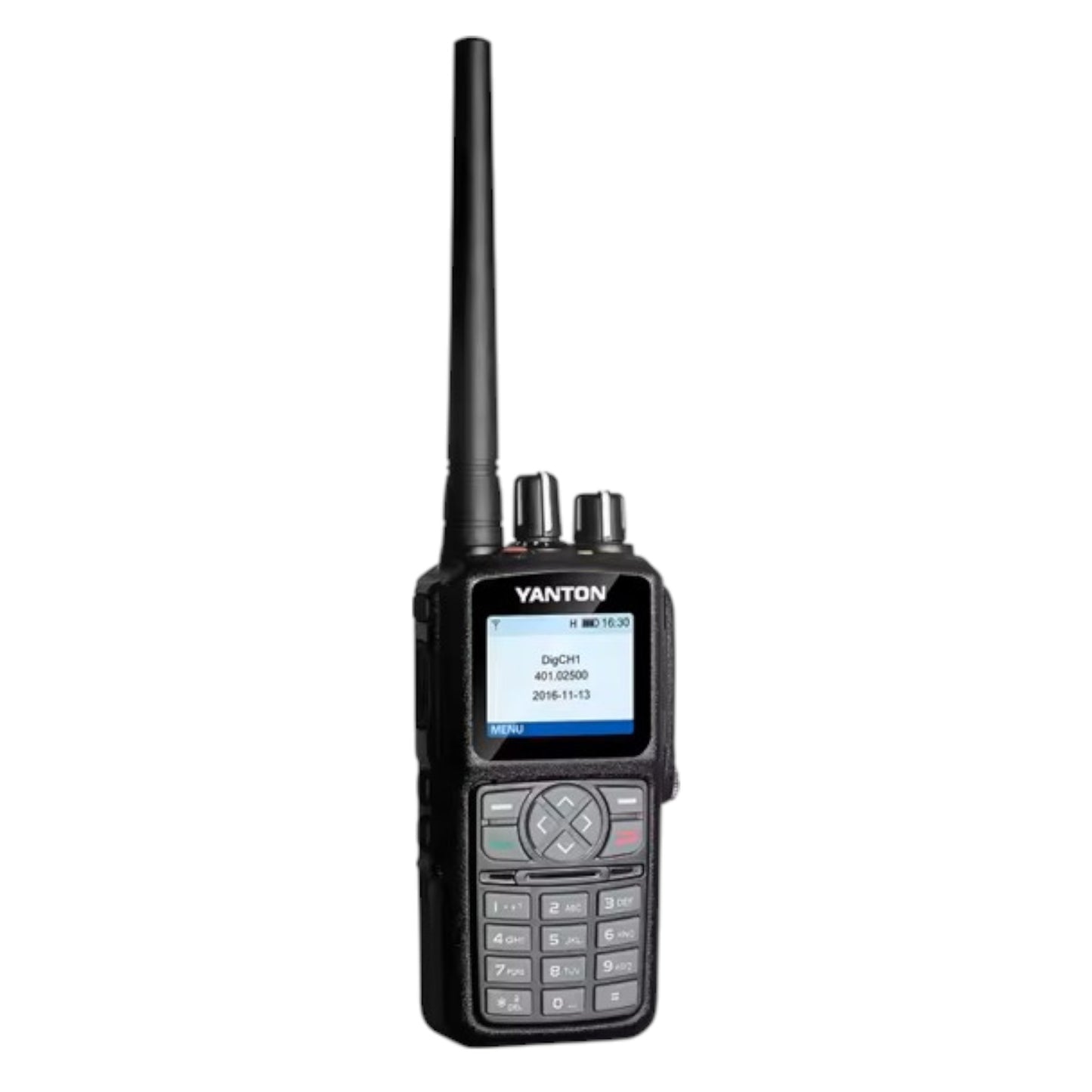

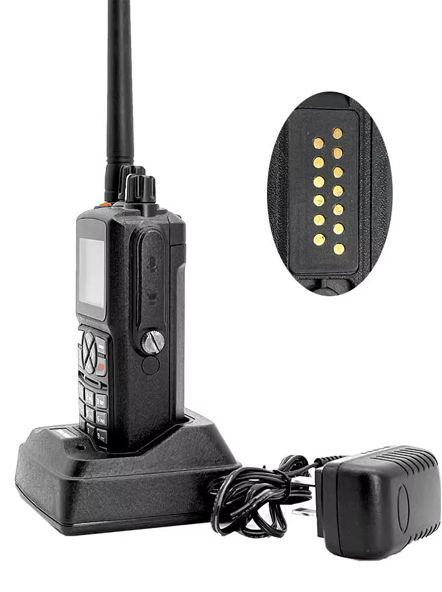

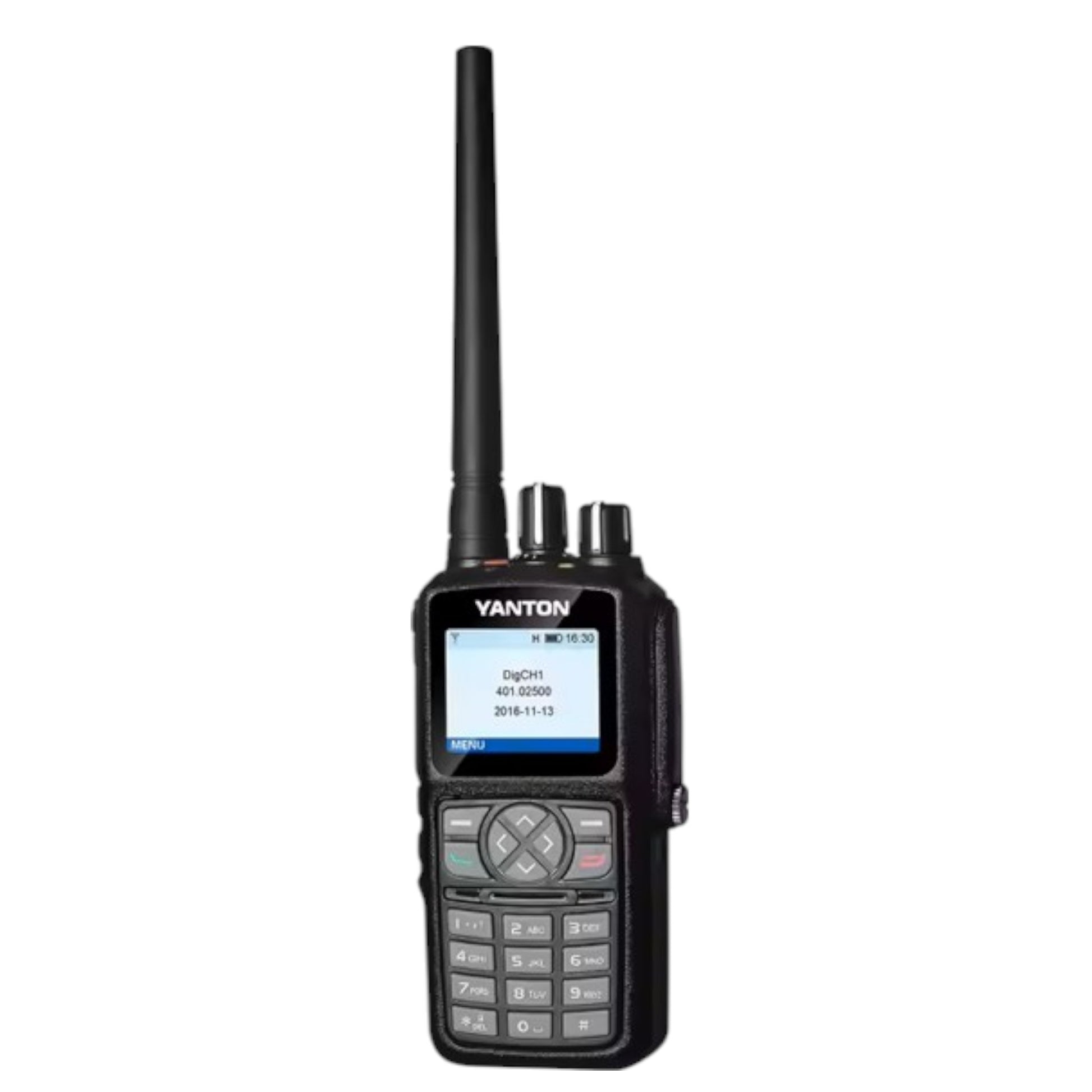

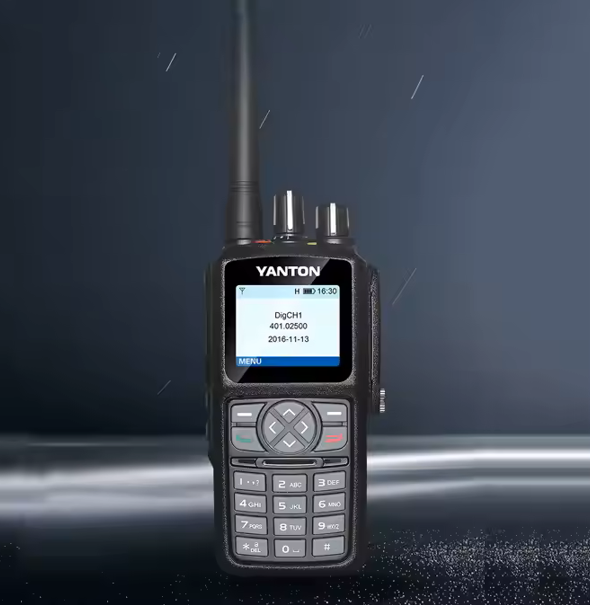

1x Yanton DM-980 DMR/analog radio
1x 2800mah battery for radio.
1x charging cradle.
1x 220Volt power supply for charging cradle.
1x wrist strap

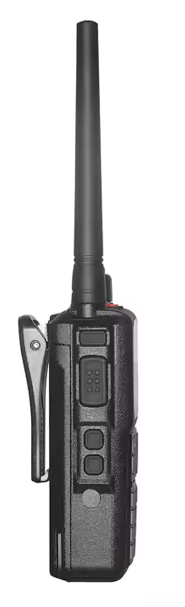

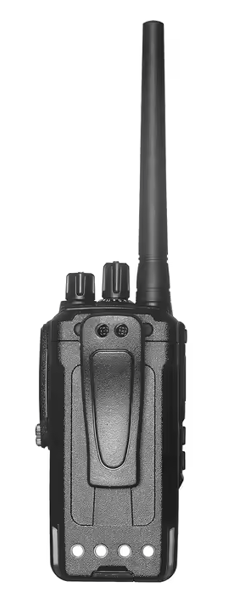

1x belt clip
1x VHF antenna
1x user manual
